Figure 2


Download original image

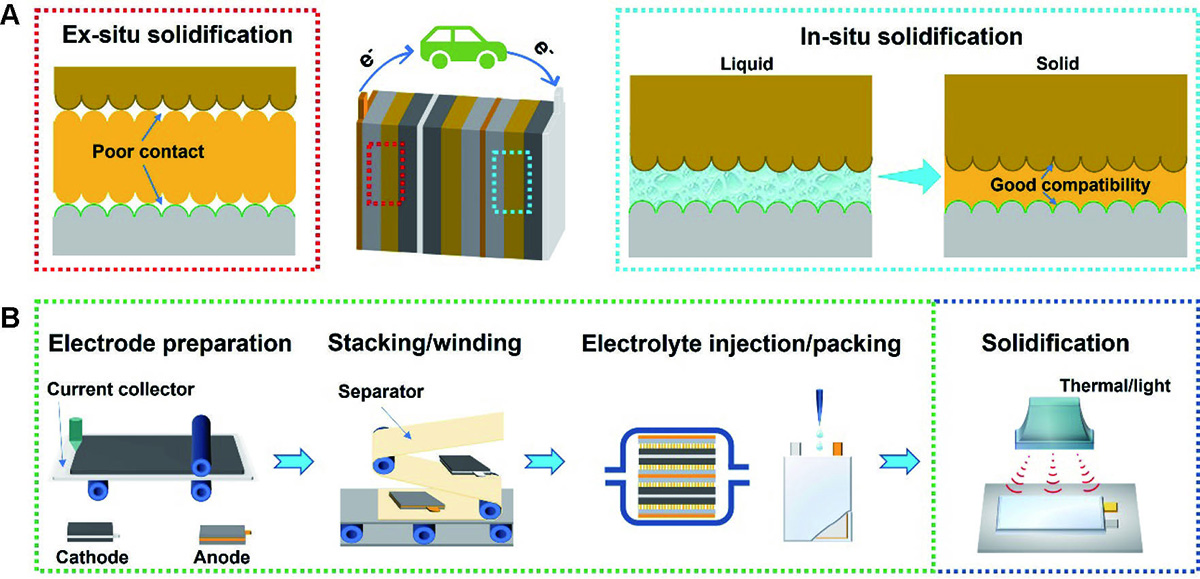

(A) Comparison of ex-situ and in-situ solidification of solid electrolytes. (B) Schematic illustrating the manufacture process of solid-state batteries when employing the in-situ solidification technique. The in-situ solidification is highly compatible with the state-of-the-art manufacture technology of commercial lithium-ion batteries (green area), which is then followed with an extra solidification process (blue area).
