Figure 15

Download original image

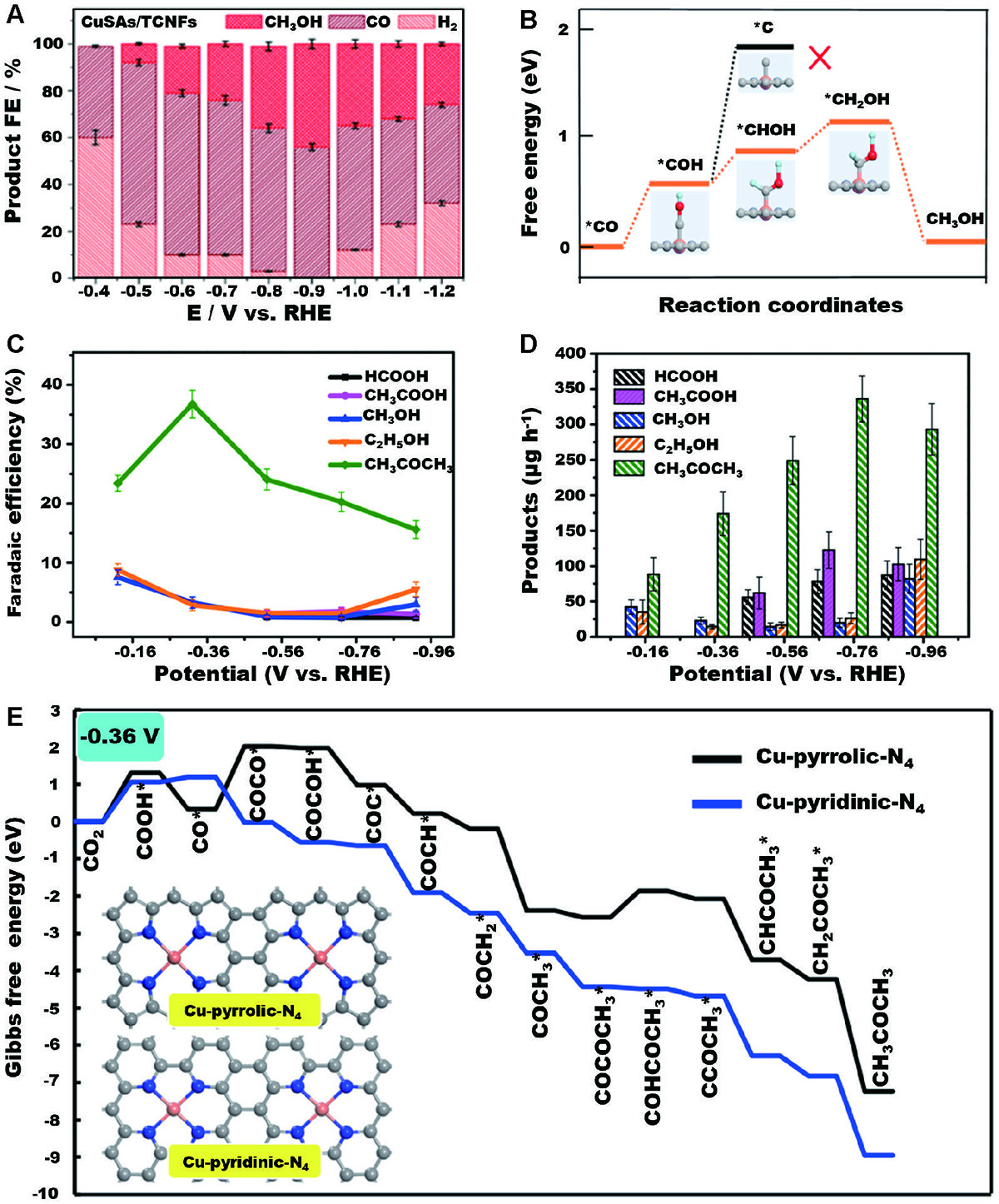

NPM-SACs/CS for CO2RR. (A) Faradaic efficiencies of all products at CuSAs/TCNFs. (B) Free energies for conversion of *CO to CH3OH on Cu−N4 structure. Orange, gray, dark blue, red, and light blue spheres stand for Cu, C, N, O, and H atoms, respectively. Reproduced with permission from ref. [192]. Copyright©2021, American Chemical Society. Faradaic efficiency (C) and production rate (D) of CO2 reduction products on Cu-SA/NPC. (E) Free energy diagrams calculated at a potential of −0.36 V for CO2 reduction to CH3COCH3 on Cu-pyridinic-N4 and Cu-pyrrolic-N4 sites of Cu-SA/NPC (the computational models were included in the figure). Reproduced with permission from ref. [193]. Copyright©2021, Springer Nature.
