Figure 15
Download original image

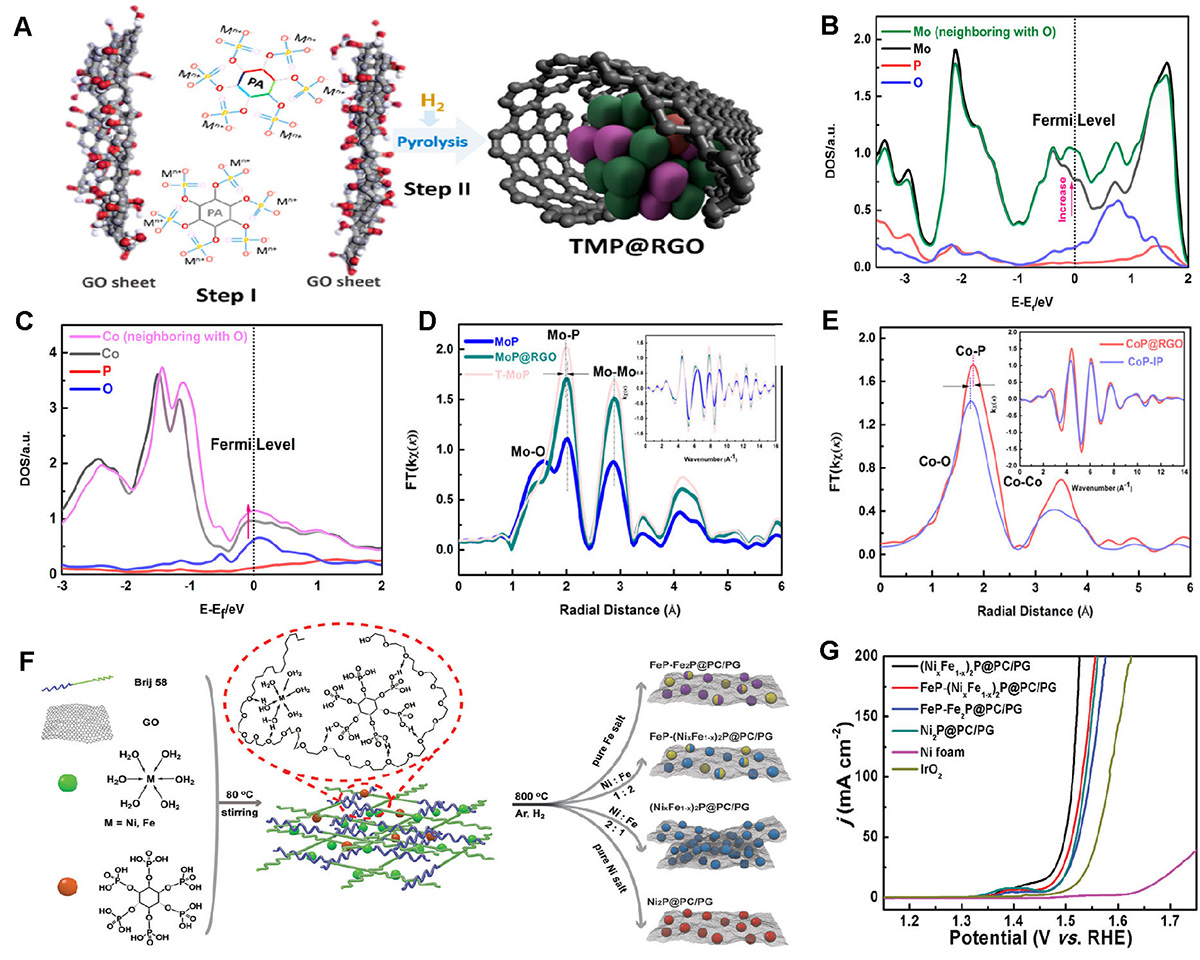

(A) Schematic illustration of the synthesis procedure of TMP@RGO. (B) Mo, and (C) Co K-edge extended XAFS oscillation function k3[χ(k)] (inset) and their corresponding Fourier transform. Average density of electronic states of different atoms in (D) O-doped MoP, and (E) O-doped CoP. Adapted with permission from [193]. Copyright 2016, American Chemical Society. (F) Schematic illustration of the synthesis procedure of (NixFe1−x)2P@PC/PG. (G) OER polarization curves and (NixFe1−x)2P@PC/PG. Adapted with permission from [195]. Copyright 2019, Willy-VCH.
