Figure 8


Download original image

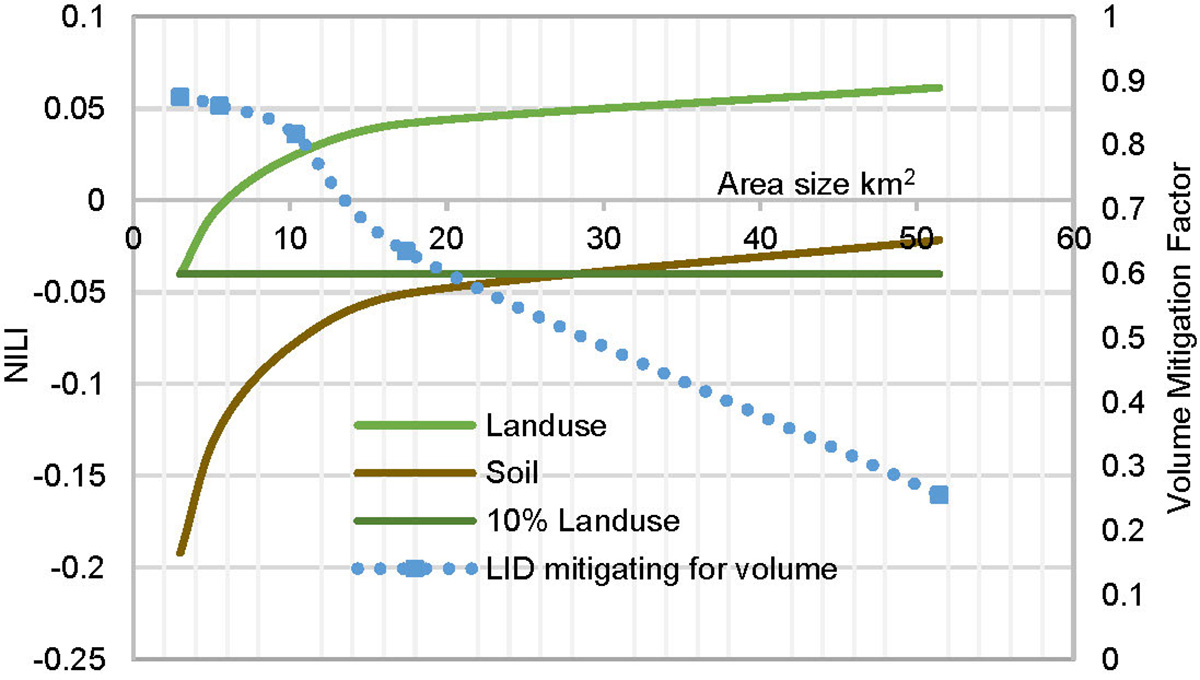

The RCP4.5 scenario LID performance for mitigating climate change impact on total volume by PCSWMM vs. catchment area. Also shown is the information loss for the landuse and soil layers from scenarios B1–B5 scenarios B1S1–B5S1 vs. catchment area. NILI for LID areas of 10% for all catchments as in B1S2–B5S2 are also shown.
