Figure 7
Download original image

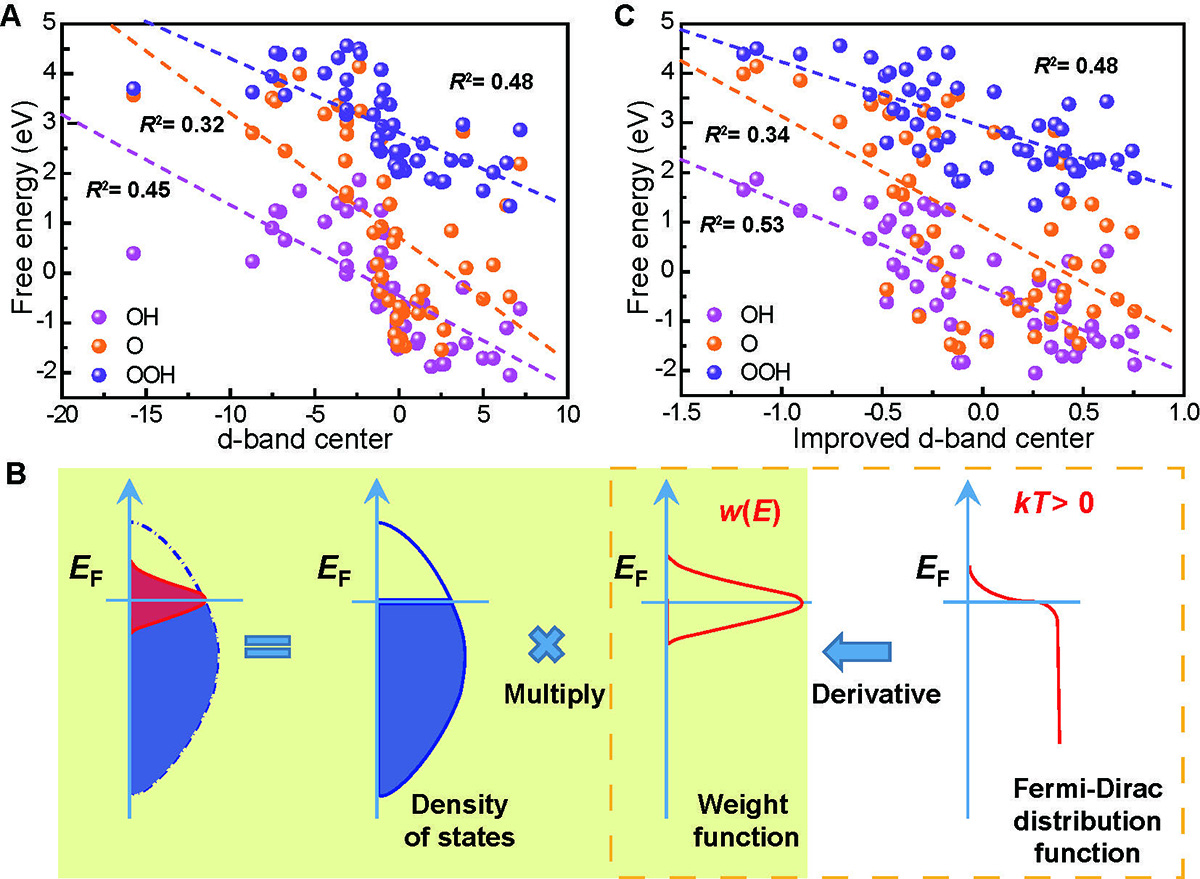

(A) The Gibbs free energy of intermediate adsorbents (O*, OH*, and OOH*) in TM-M2B2O2 as a function of d-band center. (B) Schematic diagram of weight function and improved d-band center. (C) The Gibbs free energy of intermediate adsorbents (O*, OH*, and OOH*) in TM-M2B2O2 as a function of the improved d-band center using kT = 0.5 eV (TM = 4d/5d period atoms; M = Ti, Mo, and W).
