Figure 18
Download original image

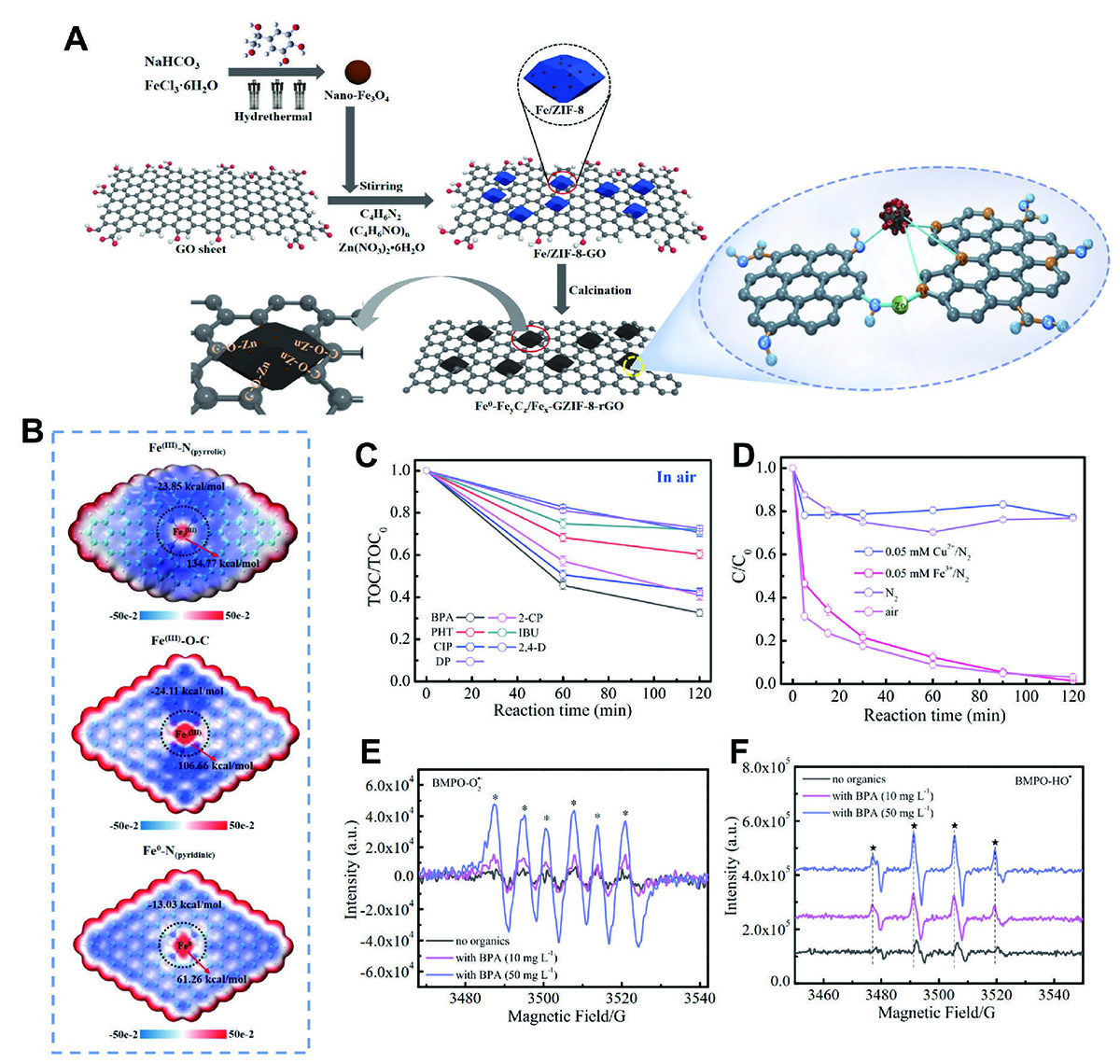

(A) Schematic illustration of the preparation of Fe0-FeyCz/Fex-GZIF-8-rGO. (B) ESP distribution for different structural model fragments of Fe0-FeyCz/Fex-GZIF-8-rGO. (C) TOC removal of various ECs. (D) BPA degradation in the aqueous suspension of Fe0-FeyCz/Fex-GZIF-8-rGO under different reaction conditions specified in the panel. (E) BMPO spin-trapping EPR spectra for O2•− in air-saturated methanol suspensions with/without BPA. (F) BMPO spin-trapping EPR spectra for •OH in the air-saturated D2O suspensions with/without BPA. Adapted with permission from ref. [34], licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International Licence.
