Figure 5

Download original image

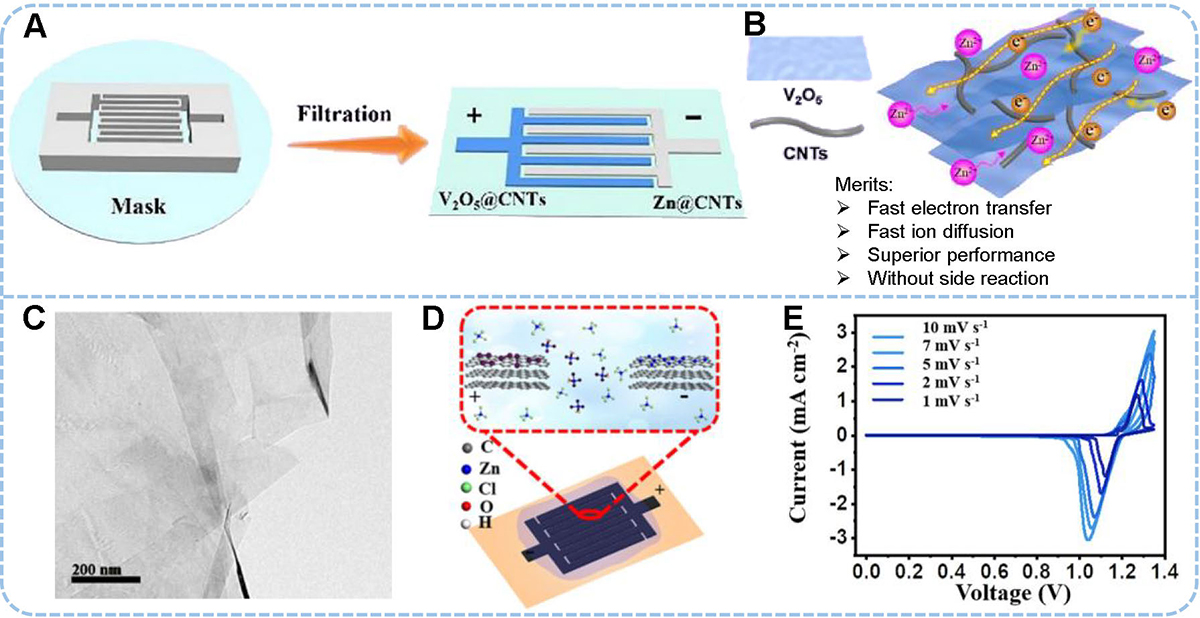

Microelectrodes fabricated by filtration techniques. (A) The illustration for preparation process of ZMBs and (B) schematic illustration of Zn2+ and electron fast transfer [81]. (C) Transmission electron microscopy (TEM) image of EG microelectrodes and (D) schematic of ZMSCs with hydrogel electrolyte, (E) CV curves from 1 to 10 mV s−1 of ZMSCs [84]. Reproduced with permission.
