Figure 5
Download original image

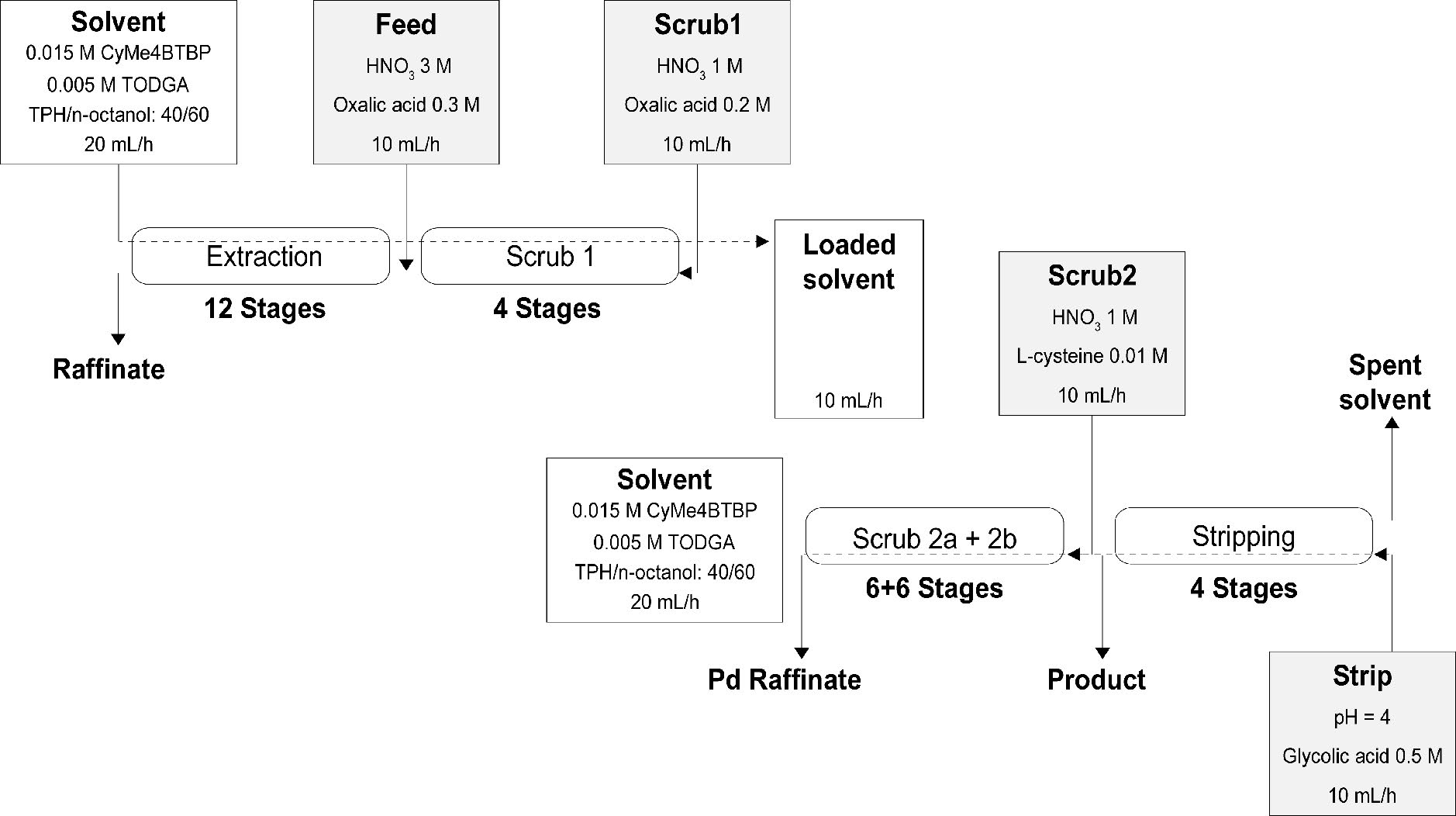

Flow sheet showing the 1-cycle SANEX processes with different carboxylic acids used during multiple stages of the process. Figure was recreated according to Ref [24].
