Advancements and challenges in enhancing salt hydrate phase change materials for building energy storage: Optimization methodologies and mechanisms

Special Topic: Energy Systems of Low Carbon Buildings

Open Access

Review

Figure 16

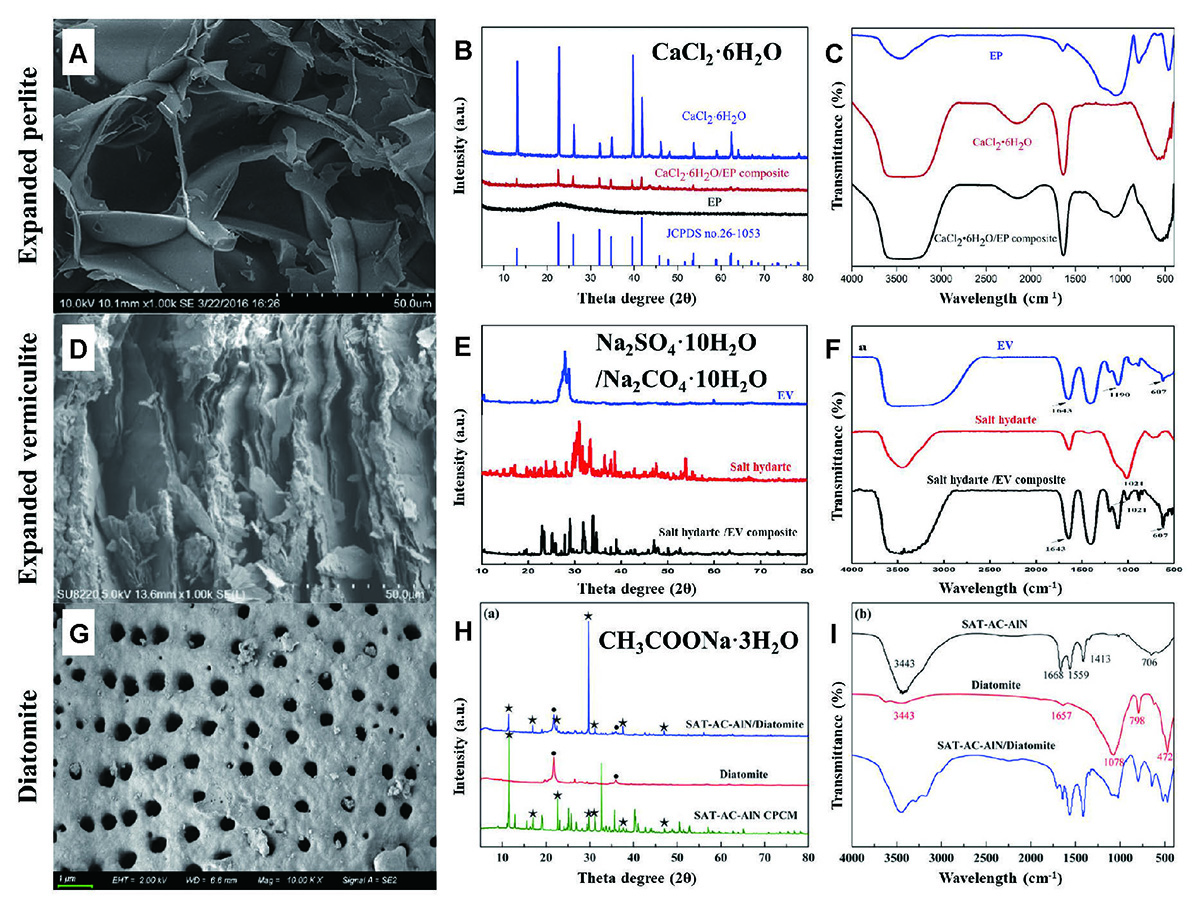

Morphologies of different porous carriers and the chemical compatibility between salt hydrate PCMs and porous carriers. (A) SEM image of EP. (B) XRD pattern of EP containing CaCl₂·6H₂O. (C) Fourier transform infrared spectroscopy (FT-IR) of EP containing CaCl₂·6H₂O. (D) SEM image of expanded vermiculite. (E) XRD pattern of expanded vermiculite containing Na₂SO₄·10H₂O and Na₂CO₄·10H₂O. (F) FT-IR spectrum of expanded vermiculite containing Na₂SO₄·10H₂O and Na₂CO₄·10H₂O. (G) SEM image of diatomite. (H) XRD pattern of diatomite containing CH₃COONa·3H₂O. (I) FT-IR spectrum of diatomite containing CH₃COONa·3H₂O. Adapted with permission from references [78,81,84], Copyright © 2017, Elsevier, Copyright © 2019, Elsevier, Copyright © 2022, Elsevier.
