Figure 4
Download original image

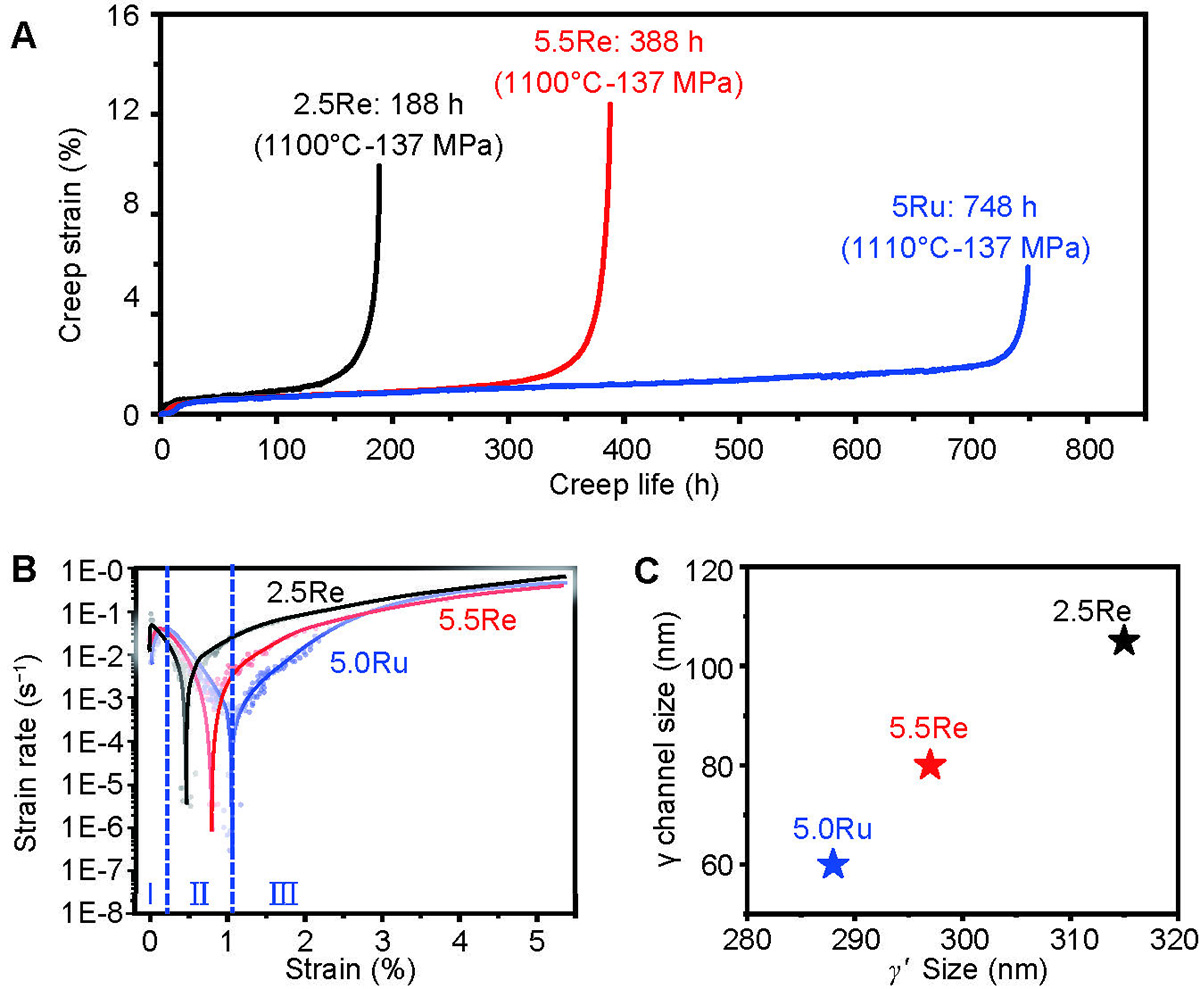

(A) The creep curves of three alloys. (B) Strain rate versus strain curve. The strain rate is represented by its logarithmic value. (C) The size effect in these three alloys. The blue line represents the new design 5.0 wt.% Ru alloy tested at 1110°C/137 MPa, and the black and red lines represent other newly designed 2.5 wt.% Re and 5.5 wt.% Re alloys tested at 1100°C/137 MPa.
