Figure 3

Download original image

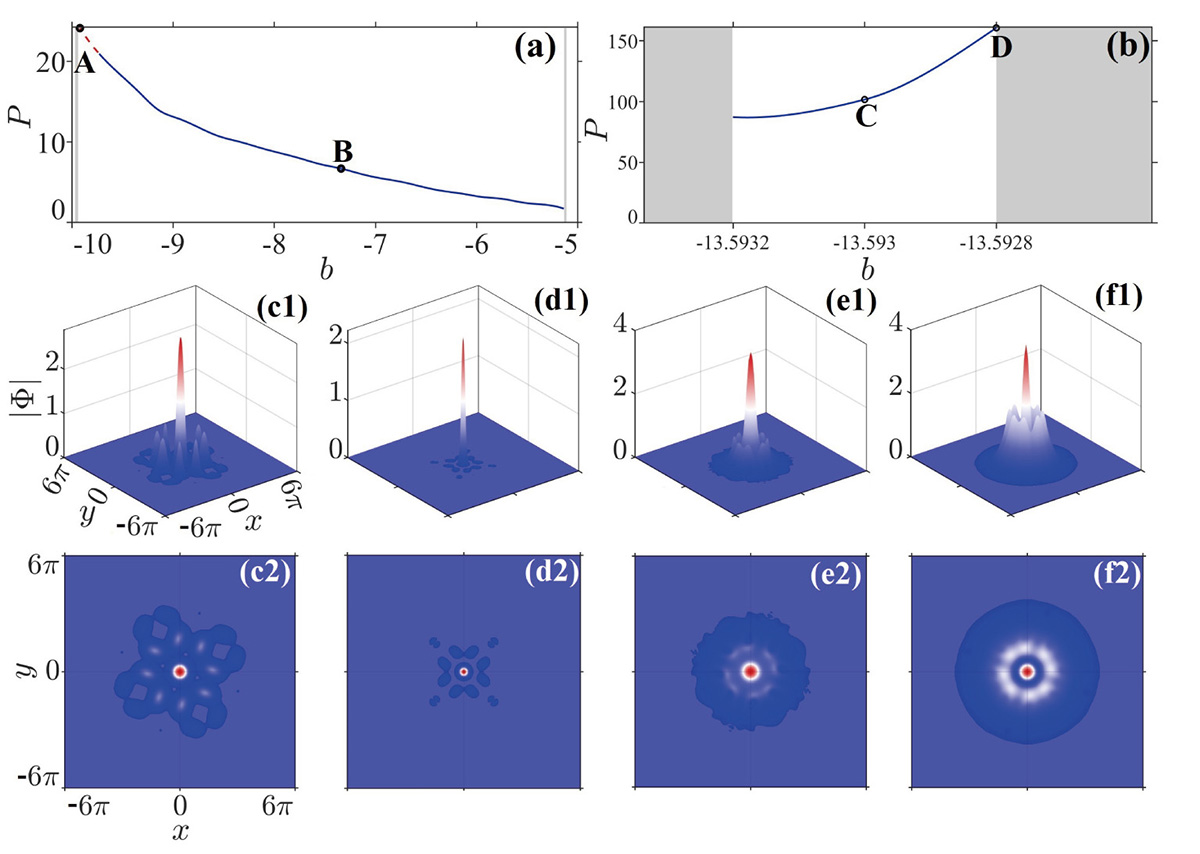

Solitons power P versus propagation constant b for commensurate (a) and incommensurate (b) moiré optical lattices. Profiles (middle line) and the contour plots (bottom line) of the fundamental gap solitons corresponding, respectively, to the marked points A and B in (a), and C and D in (b) with different b values: (c1) b=-9.92, (d1) b=-7.34, (e1) b=-13.5930, (f1) b=-13.5928.
