Figure 12

Download original image

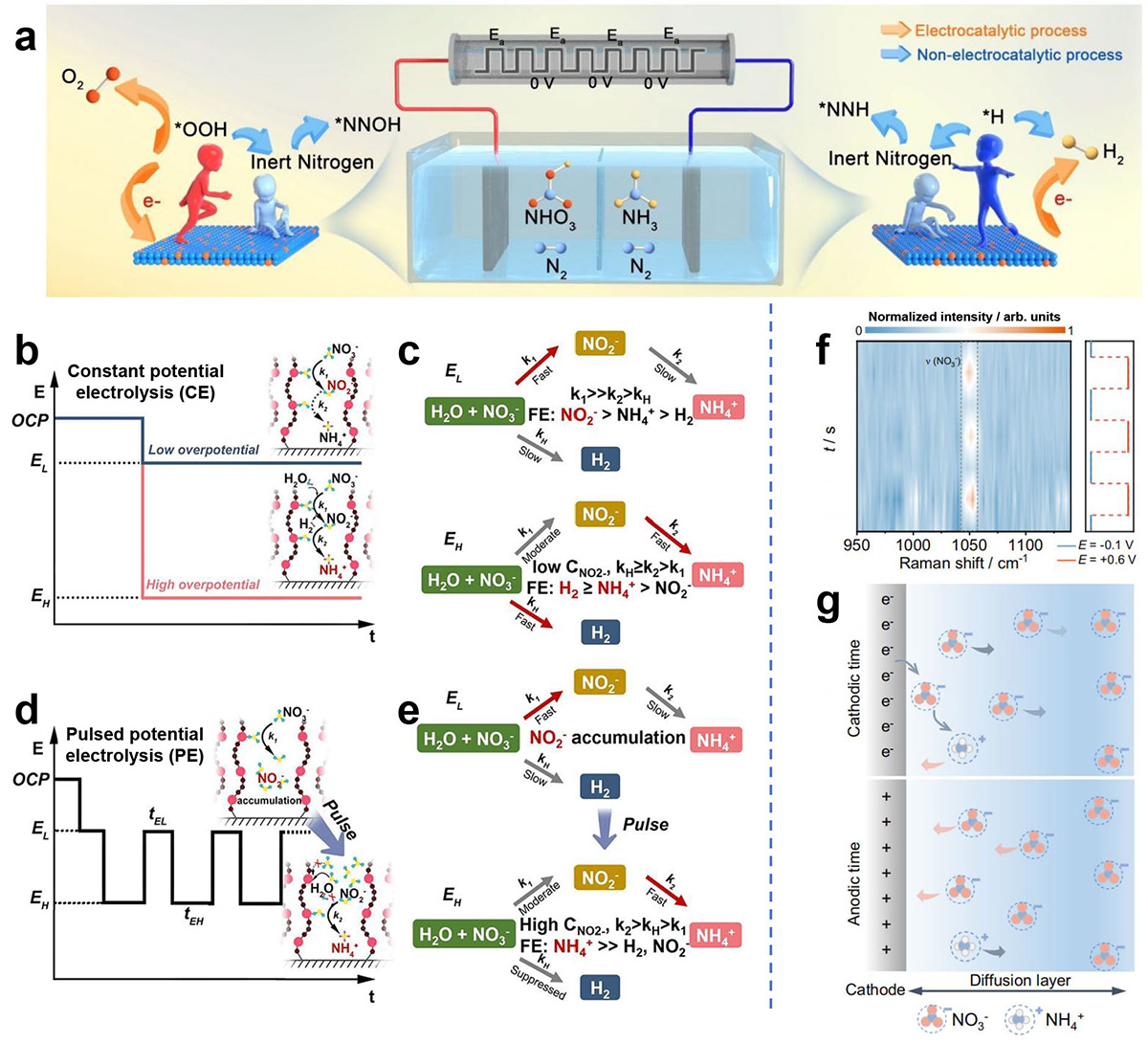

(a) Schematic diagram of NOR and NRR process at the anode and cathode chamber by pulsed electrocatalysis (Reproduced from Ref. [50]. Copyright©2023, Wiley-VCH GmbH). Schematic of reaction pathways with CE and PE. (b) Profile of applied potentials for CE. (c) Reaction mechanism of the NO3RR with CE at EL and EH. (d) Profile of the applied potential for PE. (e) Reaction pathways of the NO3RR through the tandem NO2− accumulation-conversion process with PE (Reproduced from Ref. [26]. Copyright©2023, American Chemical Society). (f) In situ Raman spectra of RuIn3/C under −0.1 V and then +0.6 V in 0.1 M KOH + 10 mM NO3− solution with 3 cycles. (g) Schematic illustration for the effect of pulsed voltage on the mass transport of different species (Reproduced from Ref. [49]. Copyright©2023, Springer Nature Limited).
