Figure 4
Download original image

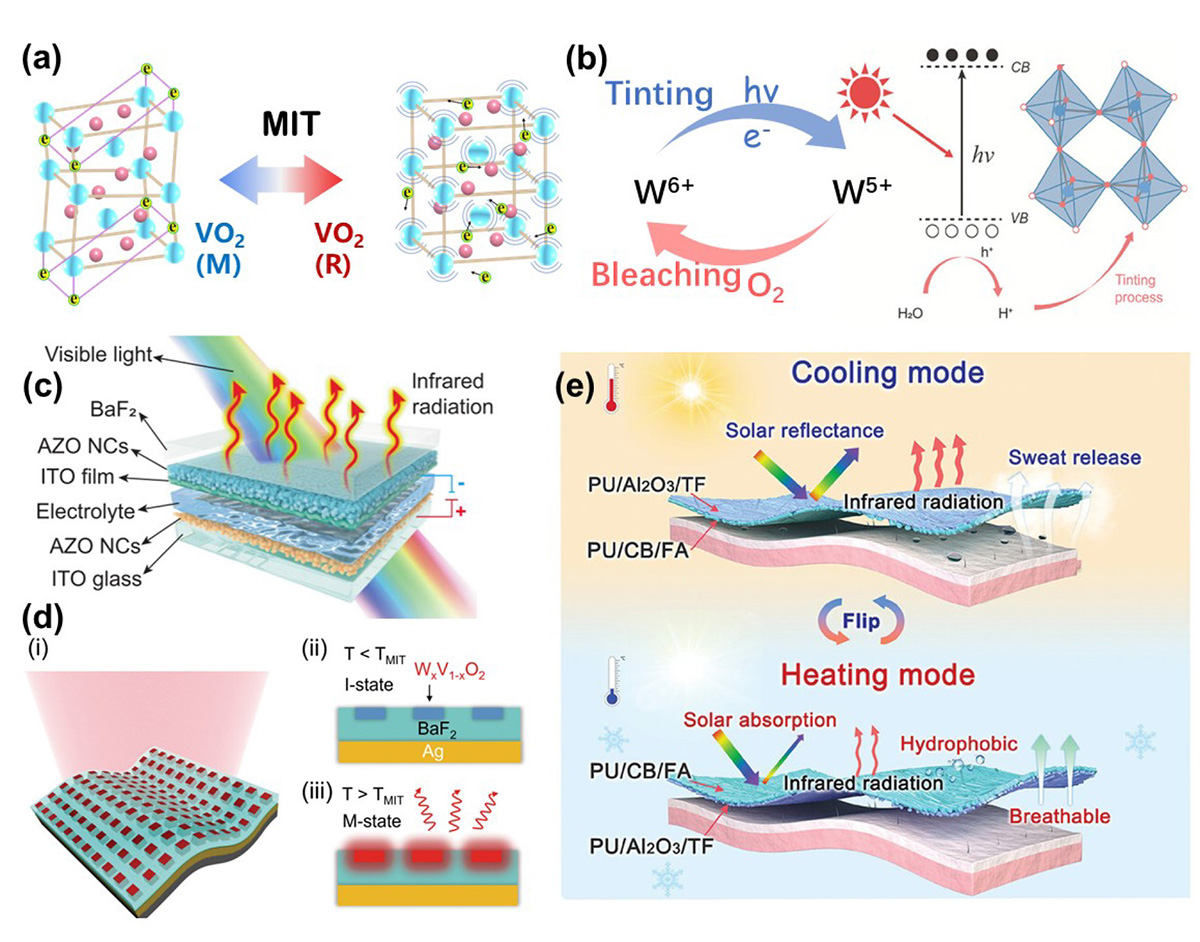

(a) Vanadium dioxide temperature-controlled switching structure undergoes phase transition to regulate near-infrared radiation. (b) The mechanism of regulating the photochromic tungsten oxide under near-infrared light [54]. Copyright©2024, John Wiley and Sons. (c) Dynamic regulation of the emission rate of mid-infrared in aluminum-doped zinc oxide nanocrystals (AZO NCs) [132]. Copyright©2023, Springer Nature. (d) Dynamic regulation of mid-infrared emissivity in F-P cavity structure based on phase-change material VO2 [133]. Copyright©2021, The American Association for the Advancement of Science. (e) The Janus structure regulates the mid-to-long infrared emissivity through mechanical flipping [134]. Copyright©2024, John Wiley and Sons.
