Figure 5

Download original image

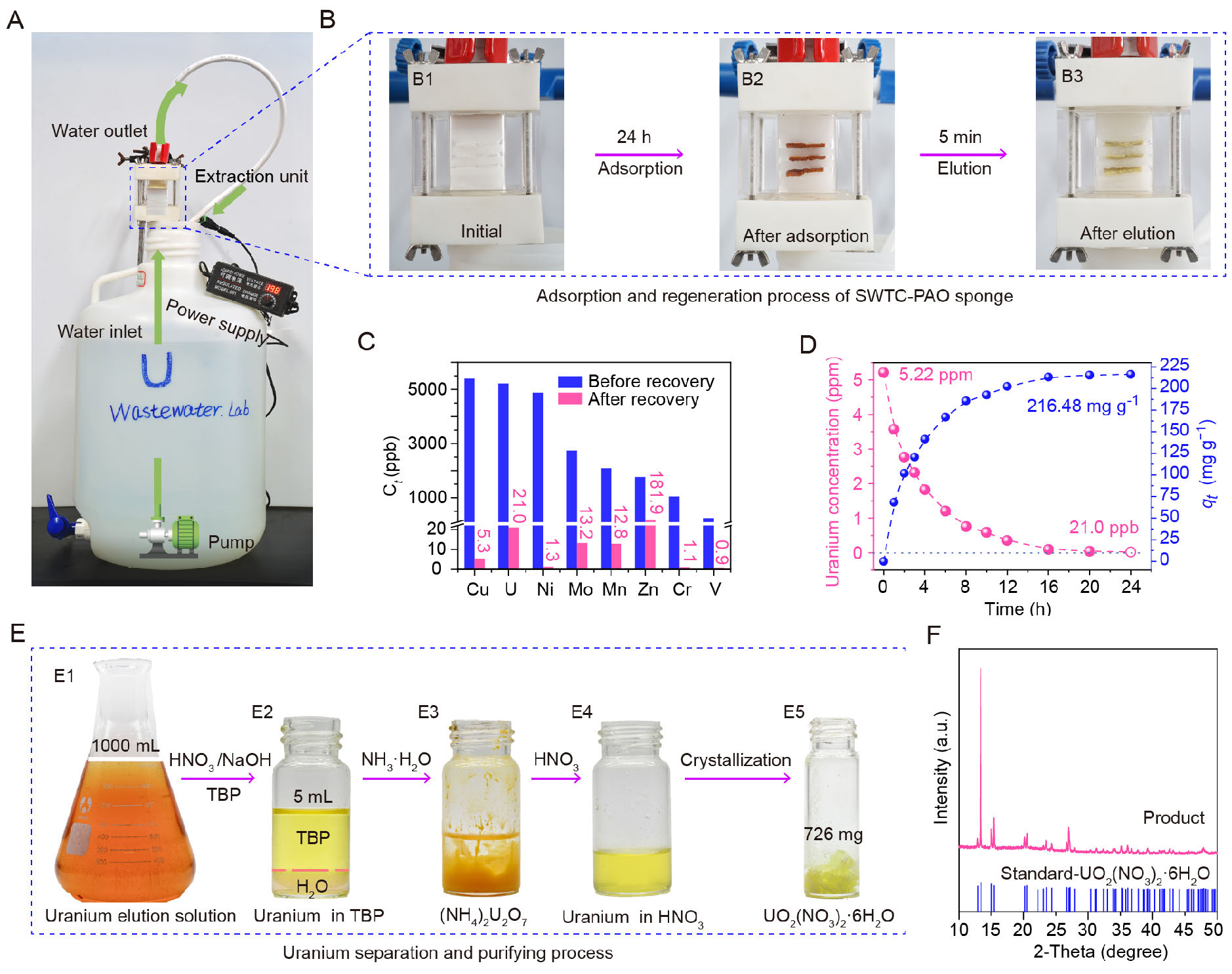

Uranium recovery from uranium-containing wastewater. (A) Schematic of the uranium recovery device for treating uranium-containing wastewater. (B) Images of SWTC-PAO sponge loaded in the extraction unit. (C) Metal ion concentrations in the wastewater before and after uranium recovery. (D) Extraction kinetics of SWTC-PAO sponge in wastewater. The change curve of uranium concentration is shown. (E) Process for separating and purifying uranium from the eluate. (F) XRD patterns of UO2(NO3)2·6H2O and the product recovered from uranium-containing wastewater.
