Figure 4

Download original image

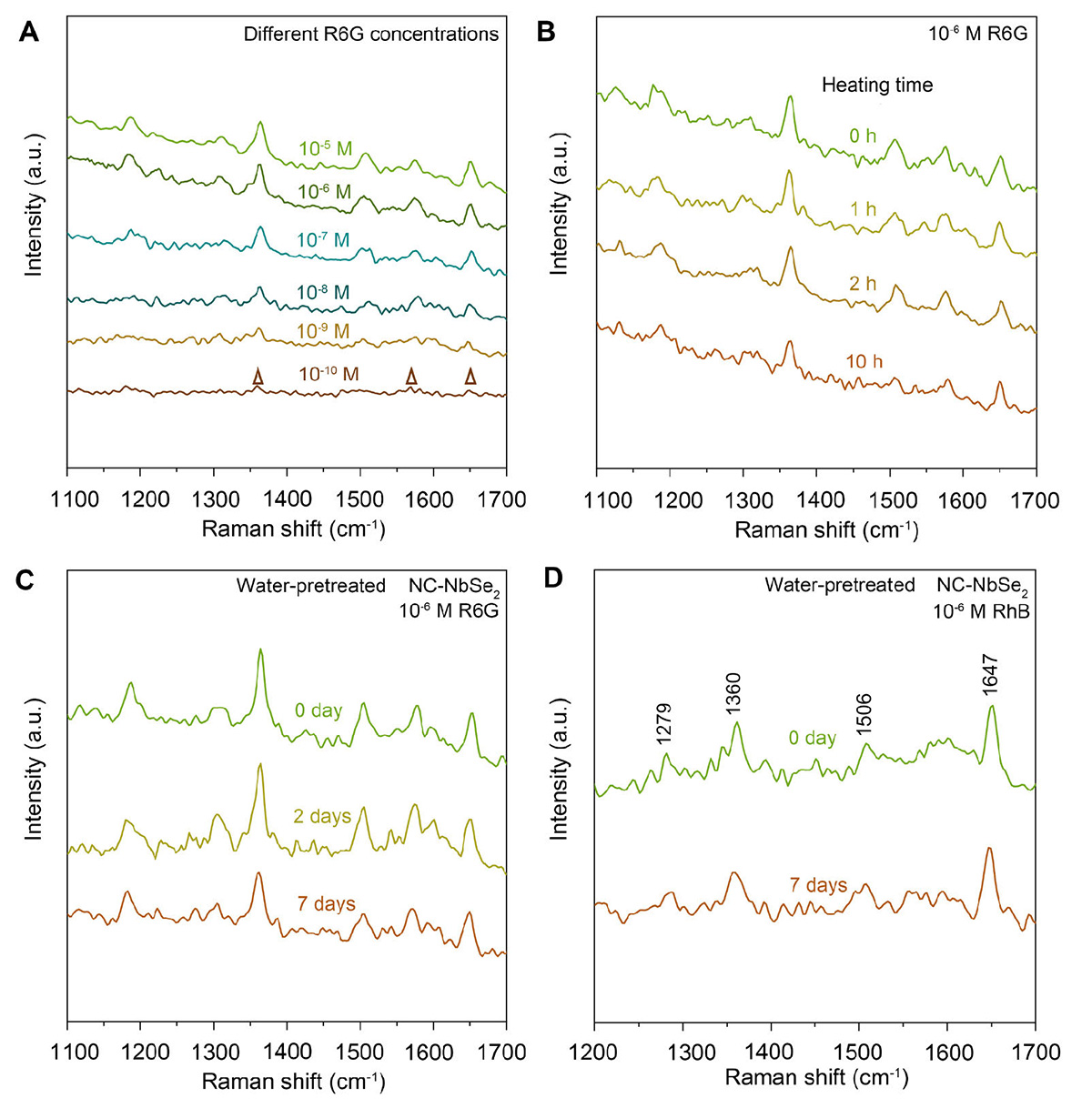

The comprehensive SERS performance evaluation of NC-NbSe2 film. (A) Stack plots of Raman spectra for R6G coated onNC-NbSe2 films with various R6G concentrations ranging from 1×10−5 to 1×10−10 M. (B) The time-dependent evolution of Raman spectra of R6G coated on NC-NbSe2 films exposure to air at 50 °C. (C) The time-dependent Raman spectra of R6G coated on NC-NbSe2 films that were pre-immerged in water for 30 min. (D) The robustness demonstration of NC-NbSe2 film with pre-immersion in water and subsequent reliable SERS signal towards RhB (4×10−6 M) detection.
