Figure 4


Download original image

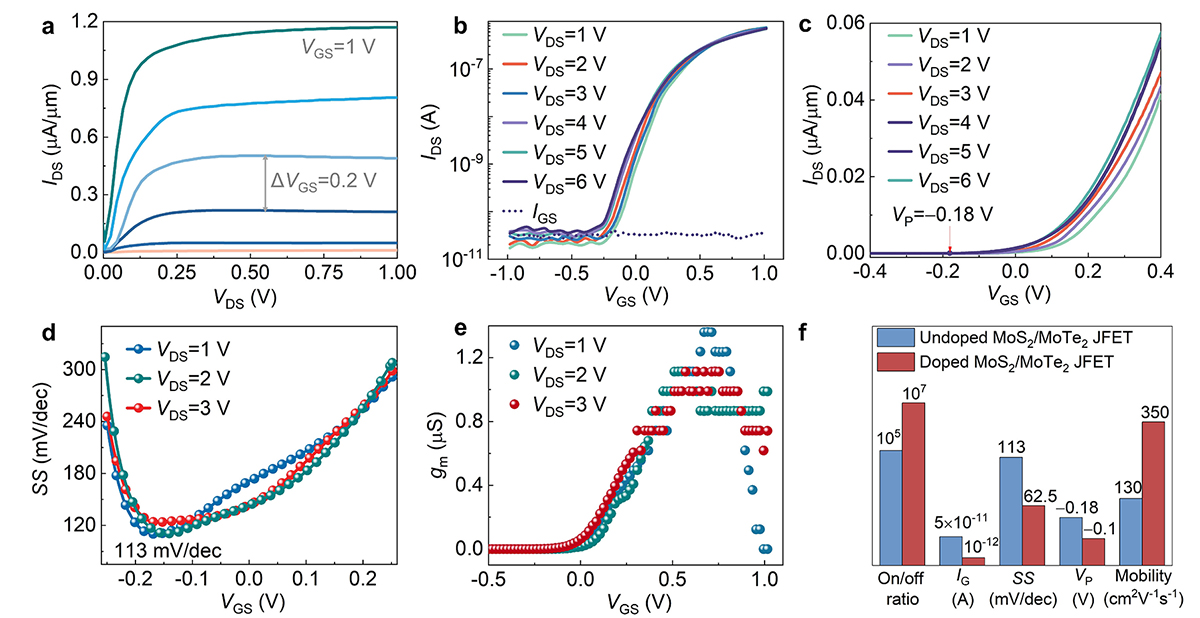

Electrical properties of undoped MoS2/MoTe2 JFET. (a) Output characteristics with increased gate voltage from 0 to 1 V. (b) Drain voltage dependent transfer characteristic curves. The current on-off ratio is about 105. (c) Linear plot of the transfer characteristics. The extracted pinch-off voltage VP is −0.18 V. (d) The SS extracted at three VDS of 1, 2, and 3 V. The minimum value of 113 mV dec−1 was extracted. (e) The gm as a function of gate voltage of the JFET at the VDS of 1, 2, and 3 V. (f) Multiple comparisons of key parameters of the uniformly doped and undoped MoS2/MoTe2 JFETs.
